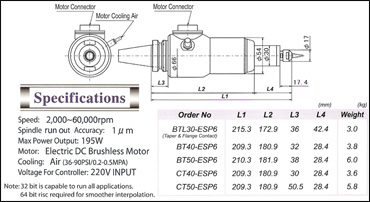

| Convert your Machining Center to a High Speed Hard Milling Center |
|
| |
|
|
• Cutting/ Engraving directly on Hard Metals – 60 Rc
• High Speed upto 60000 RPM
• Drill holes on Precision Components as small as 0.1 and 0.05mm diameter
• Feedrates upto 12000 mm/min
• DC Brushless Technology with Feedback
• Thermal Stability- run spindle continuously for over 20 hours at high speeds.
• Spindle runout less than 1 micron
• Spindle shanks with BT30, 40, 50 and HSK taper
Ultra Precision Spindle can also be supplied with Toolcraft CNC Mini Mill and Engraving Machines in the same colour as the Title. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 |
| |
Click Image to Enlarge.. |
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
